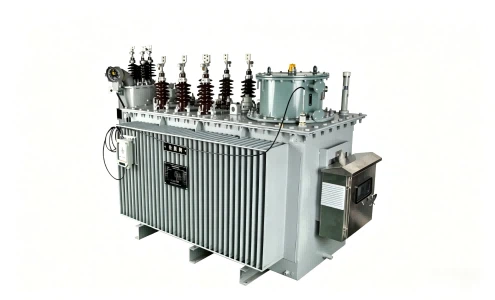

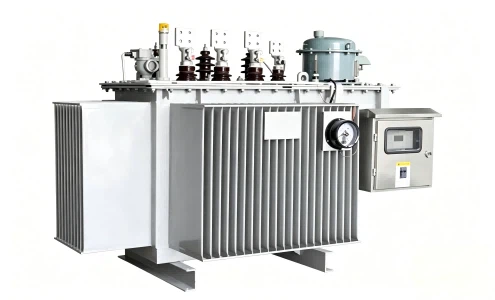

Products Introduction

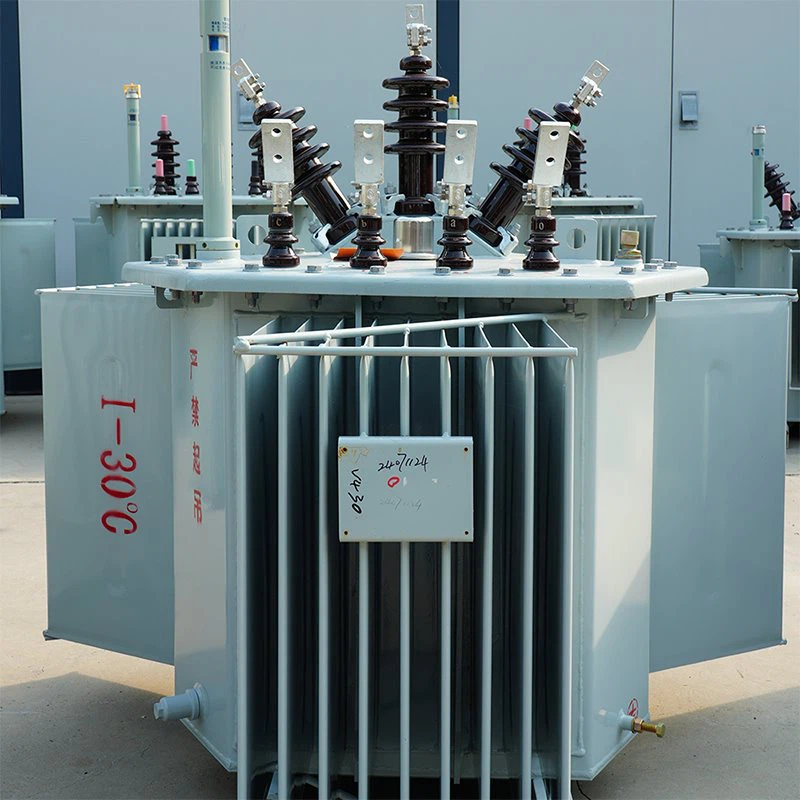

Regulating Transformers (voltage regulating transformers) are a kind of power equipment that can dynamically adjust the output voltage under load. They are different from the fixed variable ratio of ordinary transformers. It realizes continuous or hierarchical voltage adjustment by changing the tap position of the internal winding.
Based on the principle of electromagnetic induction, the different taps of the high-voltage windings are switched through the on-load tap switch (OLTC) to change the number of turns on the first and second sides to offset the voltage deviation caused by power grid fluctuations or load changes, and maintain the output voltage stability.
Including outdoor oil-immersed type (for power systems), indoor dry type (for places with high safety requirements) and laboratory low-power auto-coupling type, all with the core goal of achieving "controllable voltage regulation".
Product Advantages
Ensure the quality of power supply
It respond to voltage fluctuations in real time, stabilize the output voltage within the set range (such as within ±2%), avoid damage to precision equipment due to overvoltage/undervoltage, and improve the reliability of electricity consumption.
Support non-stop power regulation
It equipped with an on-load tap switch, voltage regulation can be completed without interrupting the load, especially suitable for industrial production, data centers and other scenarios that require continuous power supply.
Energy saving and low noise
The optimized design of three-dimensional coil iron core and amorphous alloy is used to reduce no-load loss (15%-30% energy saving compared to traditional models), while reducing operating noise (≤55dB), which meets green energy efficiency standards.
Applicable Environment
The correct matching of environmental conditions is the basis for ensuring the long-term stable operation of Regulating Transformers.

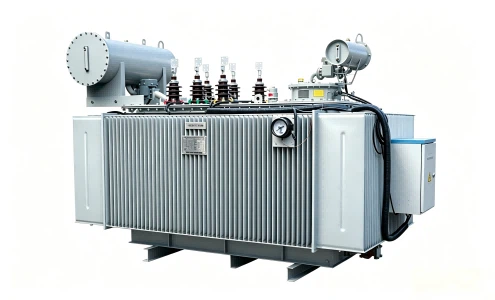

Outdoor scenes (such as agricultural networks, mines, and long-distance transmission lines)
Suitable for oil-immersed regulating transformers, which need to withstand ambient temperature -25℃~+40℃, altitude ≤1000m, and have rain, dust, and lightning resistance capabilities.
Indoor special places (such as subways, chemical plants, and high-rise buildings)
Dry-type voltage-regulating transformers are selected, which require a dry environment, no corrosive gases, good ventilation (to ensure that the temperature rise is ≤100K), and away from flammable and explosive sources.
Laboratory/small equipment matching
Low-power voltage regulators need to be used on a dry, dust-free work surface to avoid moisture or vibration. The input voltage is usually 220V/380V, and the output adjustment range is wide (such as 0~250V).
| Model Number | Rated Volume Quantity (KVA) |
Voltage Combination(KV) | Connection Group Label | No-load Loss (W) |
Load Loss (W) |
No-load Electricity (%) |
Short Circuit Resistance (%) |
||
| High Voltage | High Voltage Tap Range | Low Voltage | |||||||
| S22-M-30 | 30 | 6 6.3 10 10.5 |
±5% or ±2×2.5% |
0.4 | Dyn11 or Yyn0 |
65 | 455/430 | 0.5 | 4 |
| S22-M-50 | 50 | 80 | 655/625 | 0.5 | 4 | ||||
| S22-M-63 | 63 | 90 | 785/745 | 0.5 | 4 | ||||
| S22-M-80 | 80 | 105 | 945/900 | 0.45 | 4 | ||||
| S22-M-100 | 100 | 120 | 1140/1080 | 0.45 | 4 | ||||
| S22-M-125 | 125 | 135 | 1360/1295 | 0.45 | 4 | ||||
| S22-M-160 | 160 | 160 | 1665/1585 | 0.4 | 4 | ||||
| S22-M-200 | 200 | 190 | 1970/1870 | 0.4 | 4 | ||||
| S22-M-250 | 250 | 230 | 2300/2195 | 0.4 | 4 | ||||
| S22-M-315 | 315 | 270 | 2760/2630 | 0.35 | 4 | ||||
| S22-M-400 | 400 | 330 | 3250/3095 | 0.35 | 4 | ||||
| S22-M-500 | 500 | 385 | 3900/3710 | 0.3 | 4 | ||||
| S22-M-630 | 630 | 460 | 4460 | 0.25 | 4.5 | ||||
| S22-M-800 | 800 | 560 | 5400 | 0.18 | 4.5 | ||||
| S22-M-1000 | 1000 | 665 | 7415 | 0.17 | 4.5 | ||||
| S22-M-1250 | 1250 | 780 | 8640 | 0.17 | 4.5 | ||||
| S22-M-1600 | 1600 | 940 | 10440 | 0.16 | 4.5 | ||||
| S22-M-2000 | 2000 | 1085 | 13180 | 0.16 | 5 | ||||
| S22-M-2500 | 2500 | 1280 | 15265 | 0.16 | 5 | ||||
